Chipstead Way

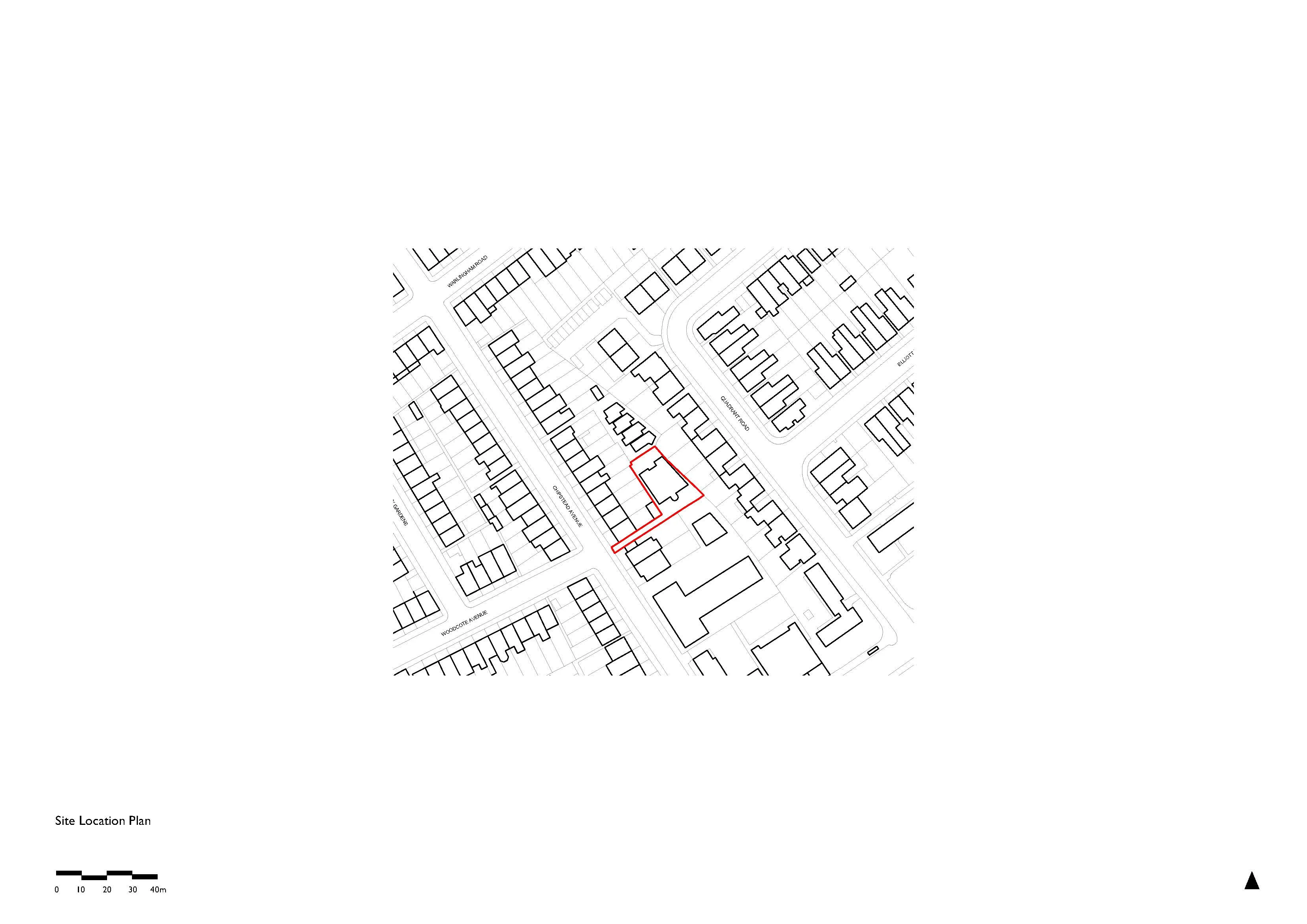

Located on an infill site in Croydon, we have gained planning consent for 8 new build apartments. The design responds to the characteristic bays of the estate that it forms a continuation of, and uses these bays to eliminate overlooking between the proposal and its neighbours by directing views diagonally across the site.

Office S&M specialise in infill housing on small sites. As leaders in this field, we have input on the development of Croydon’s small sites policy, which our project Valetta House is featured as an exemplar in; then workshopped Tower Hamlets’ small sites policy, which our project Salmen House is featured as an exemplar in; and most recently commented on the Lewisham small sites policy during two workshops. More recently, we have reflected on the published small sites policy in the London Plan, run Clubhouse and Podcast discussions about delivery on small sites, and presented to Urban Design London as experts in this area.

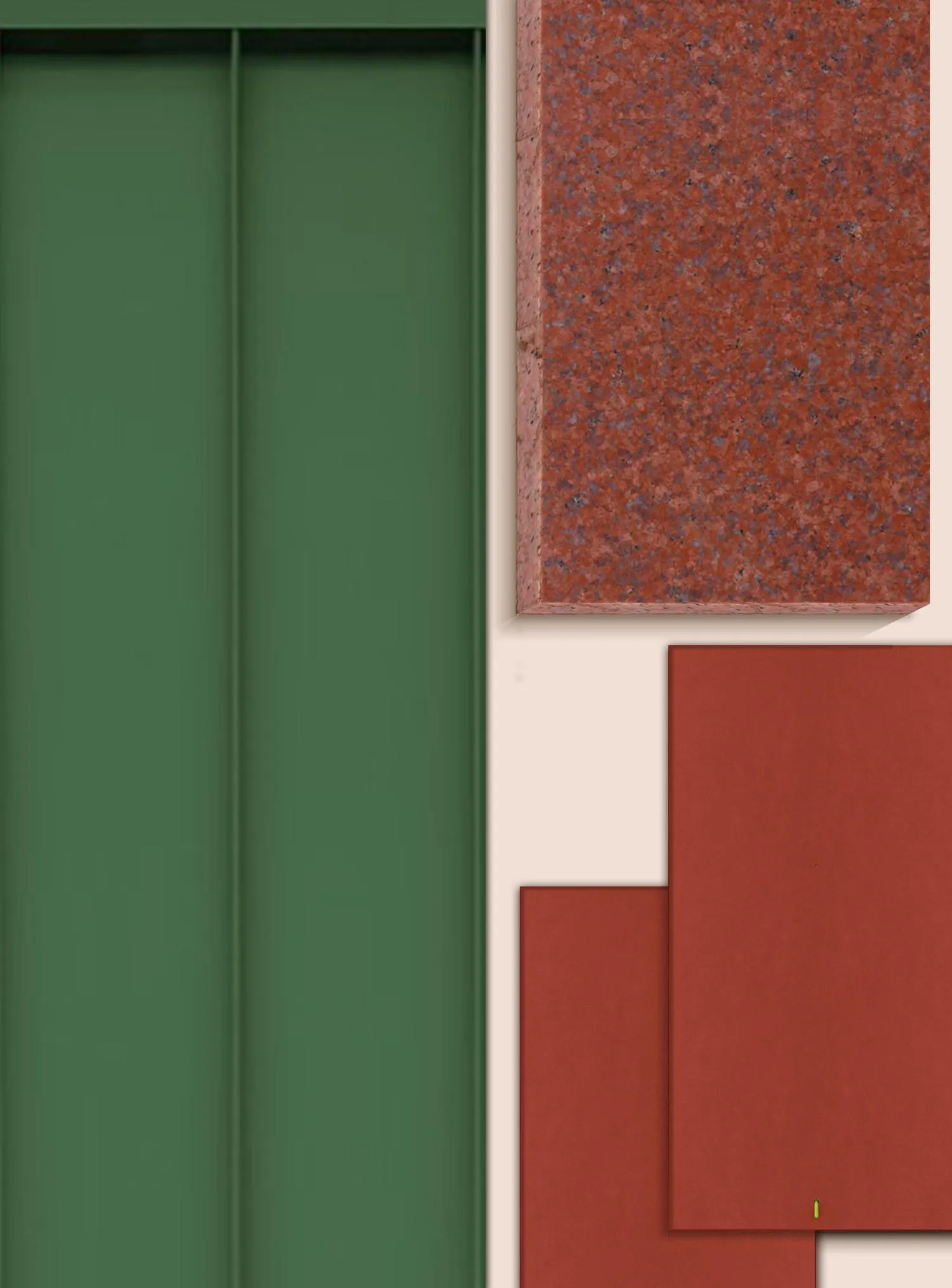

Photo of the sample materials used for the project. By Office S&M, RIBA Chartered Architectural Practice in London.

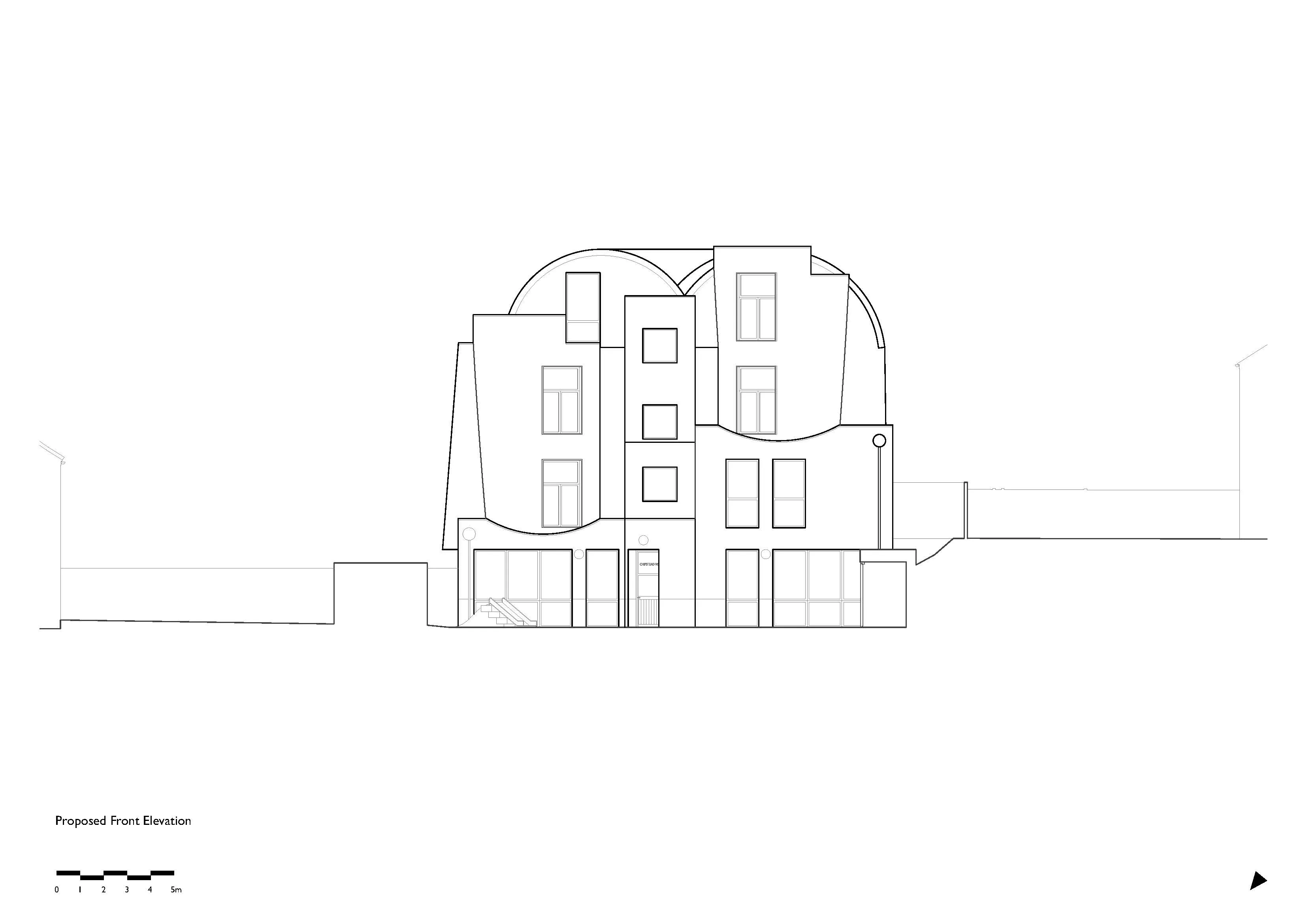

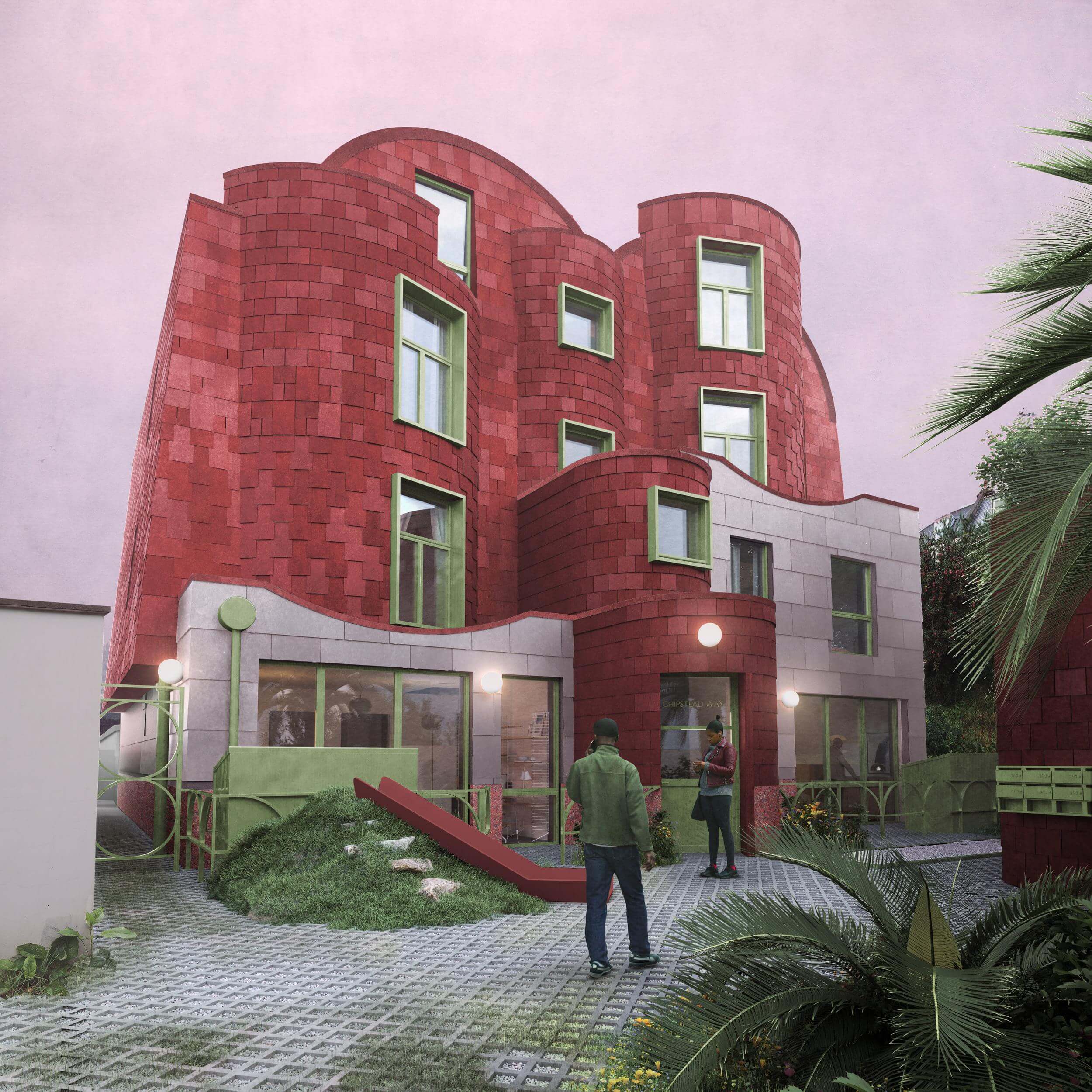

External visual perspective, showing the housing project from the street, looking at the entrance and the front facade. By Office S&M, RIBA Chartered Architectural Practice in London.

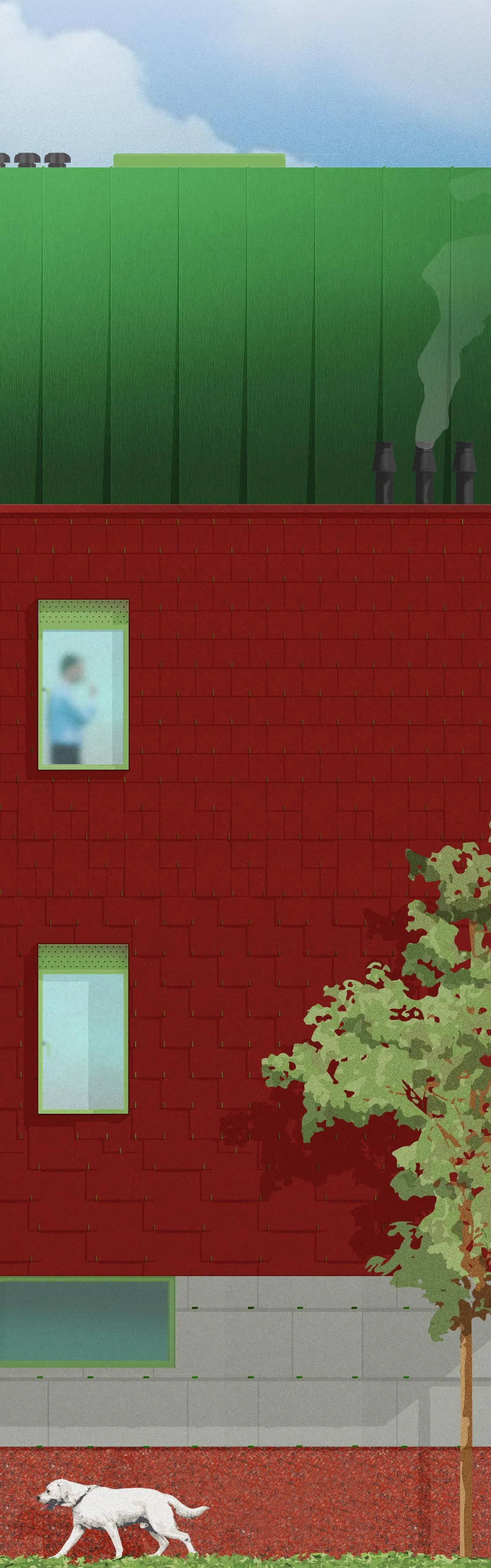

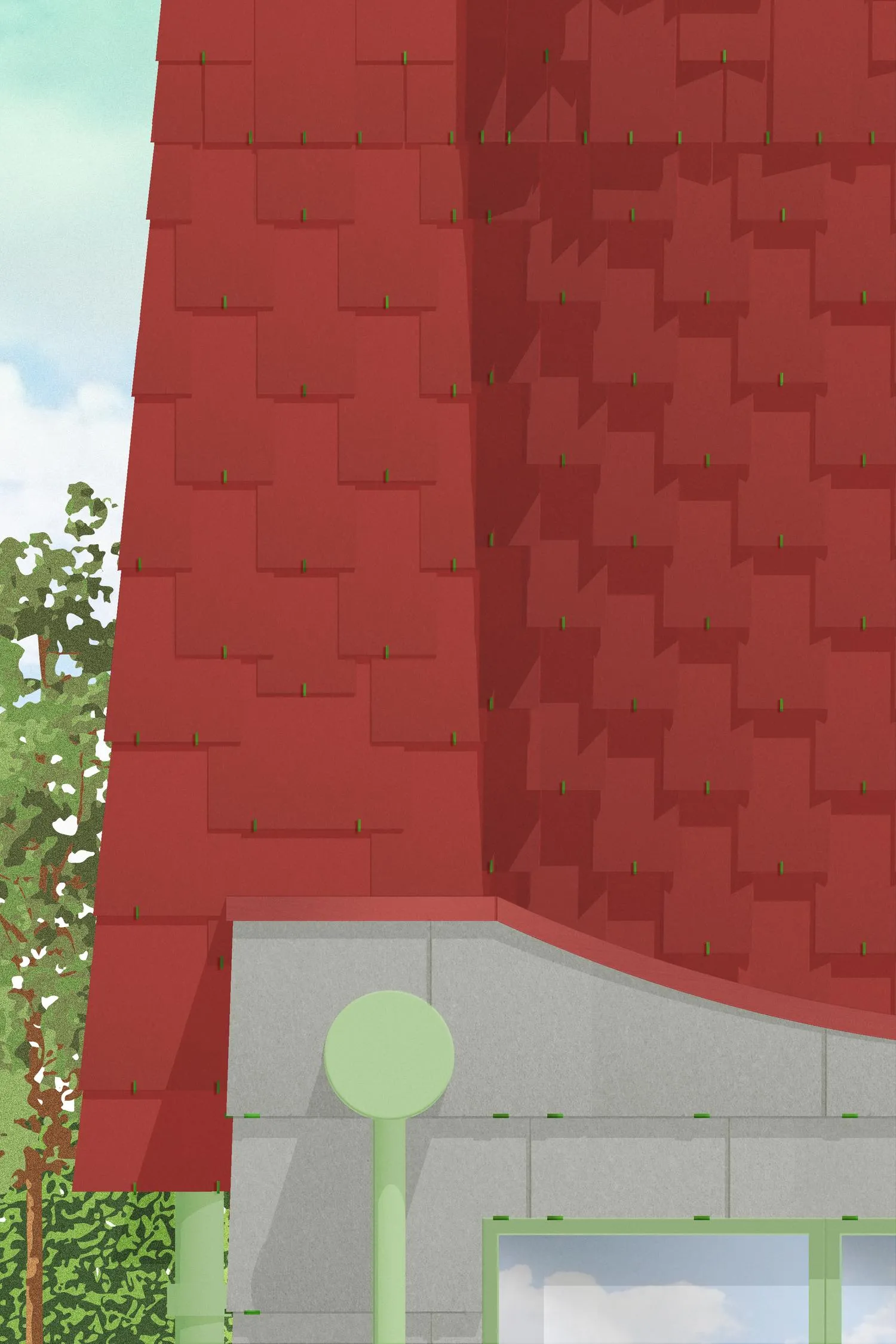

The detailing of our proposal has been developed from an investigation into the laying patterns for hung fibre cement tiles, with the aim of breaking up the mass of the building. The tapering corners and diminishing tiling creates a forced perspective that aims to make the building appear further away than it actually is. This careful detailing elevates an affordable material to a high quality finish, while also making a cohesive whole of building form.

Detail collage impression of the roof parapet and gutter. By Office S&M, RIBA Chartered Architectural Practice in London.

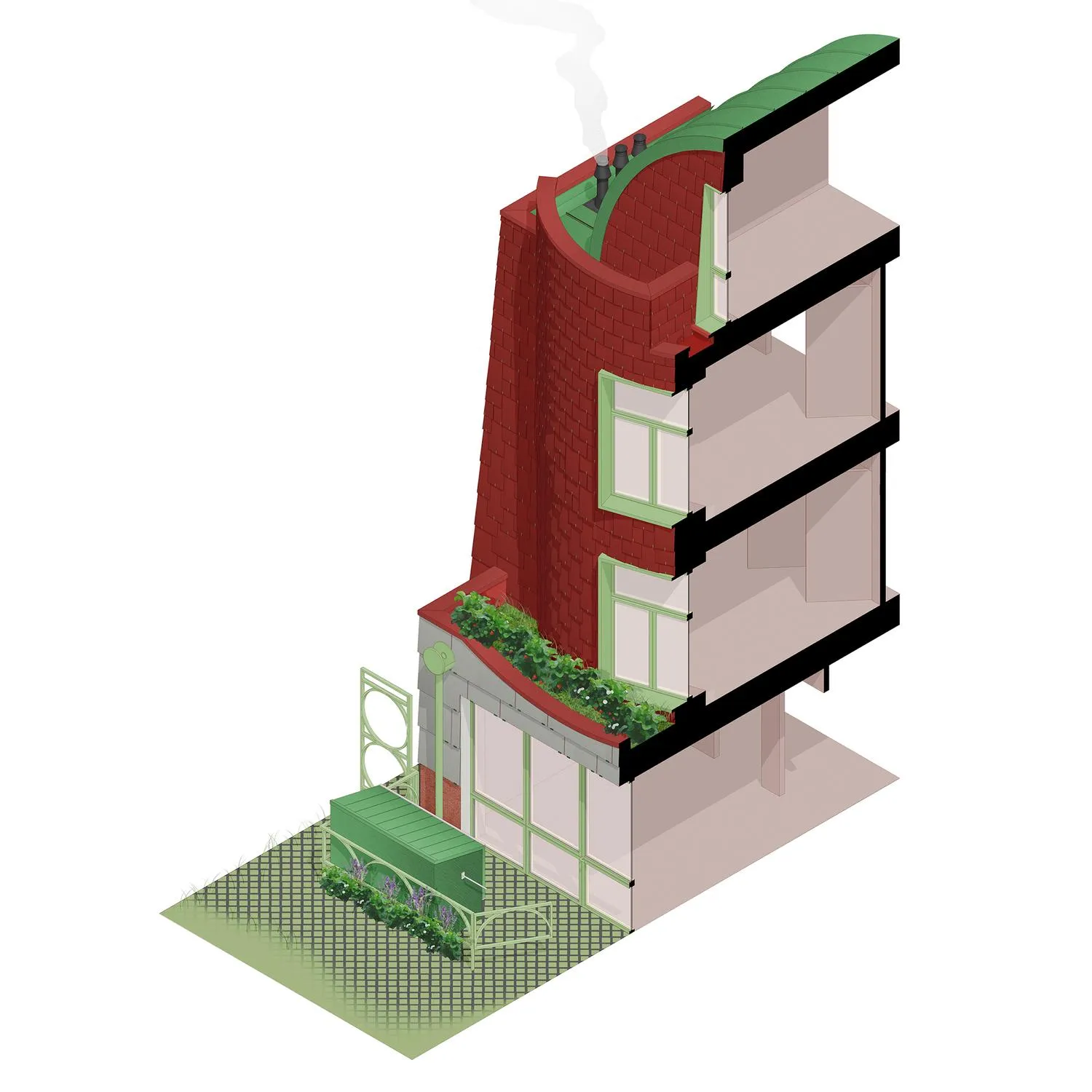

Axonometric cutout drawing, showing the front elevation and floor heights of the building. By Office S&M, RIBA Chartered Architectural Practice in London.

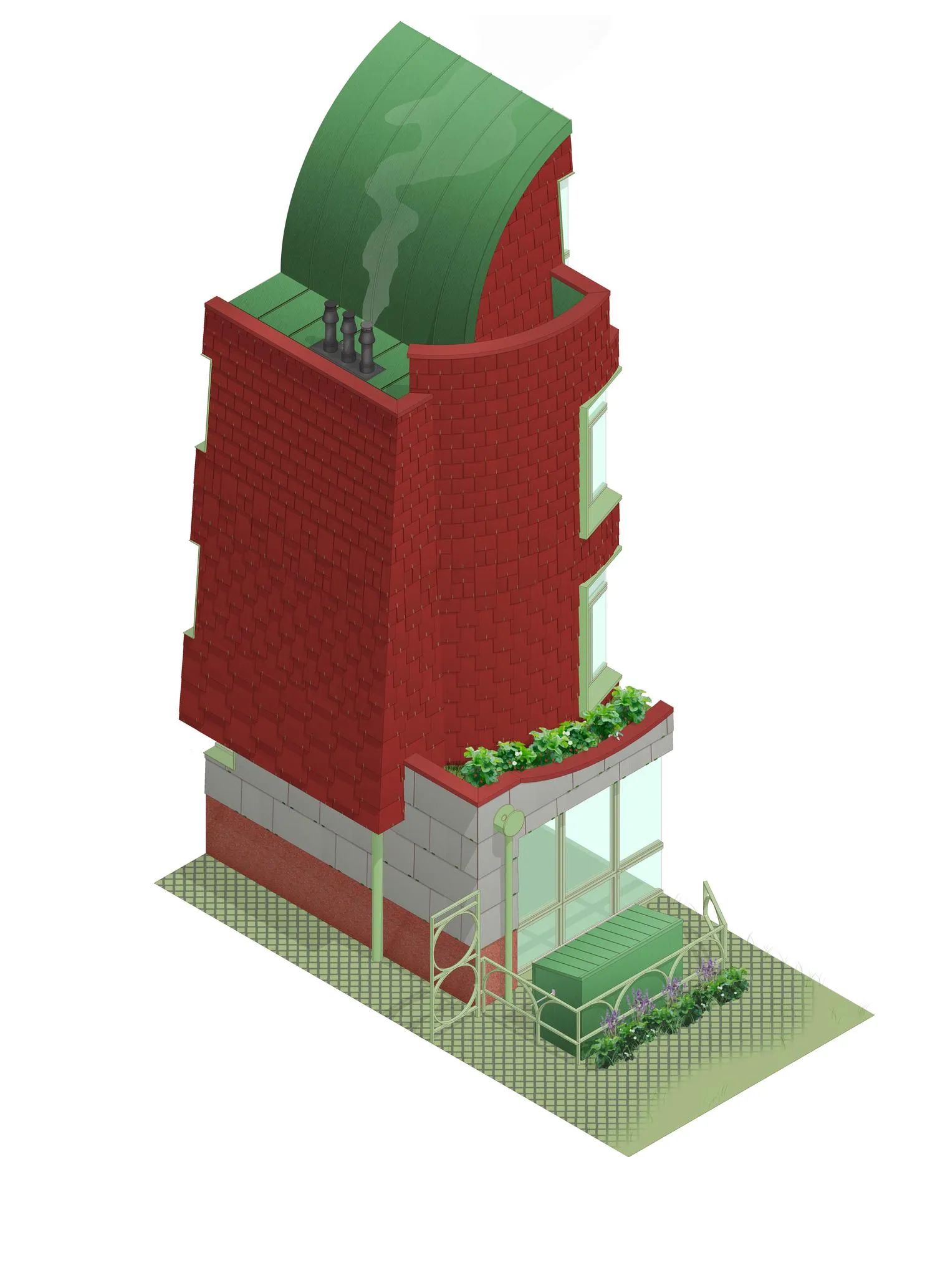

Axonometric cutaway drawing showing the geometry of the building and roof shapes. By Office S&M, RIBA Chartered Architectural Practice in London.

No items found.

‘I first reached out to Office S&M when I had a micro site in Thornton Heath, the previous architect could only envisage 5 units but I felt there was room for more and the end result was Office S&M delivering consent for 8 units on the site. Since then Office S&M have become my go to architects and have managed to get me other consents on equally constrained sites.‘

Omo Ayoade, Client

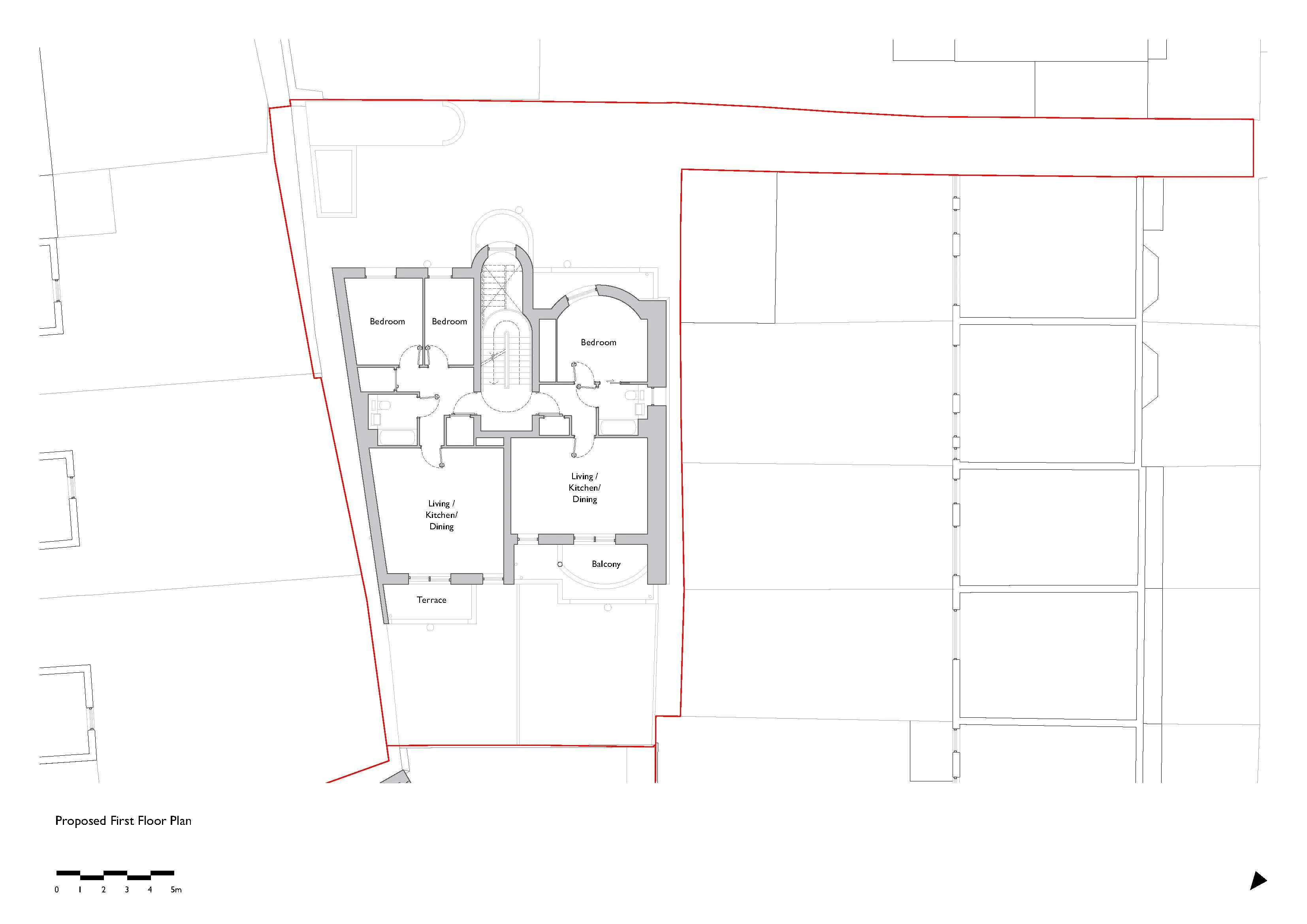

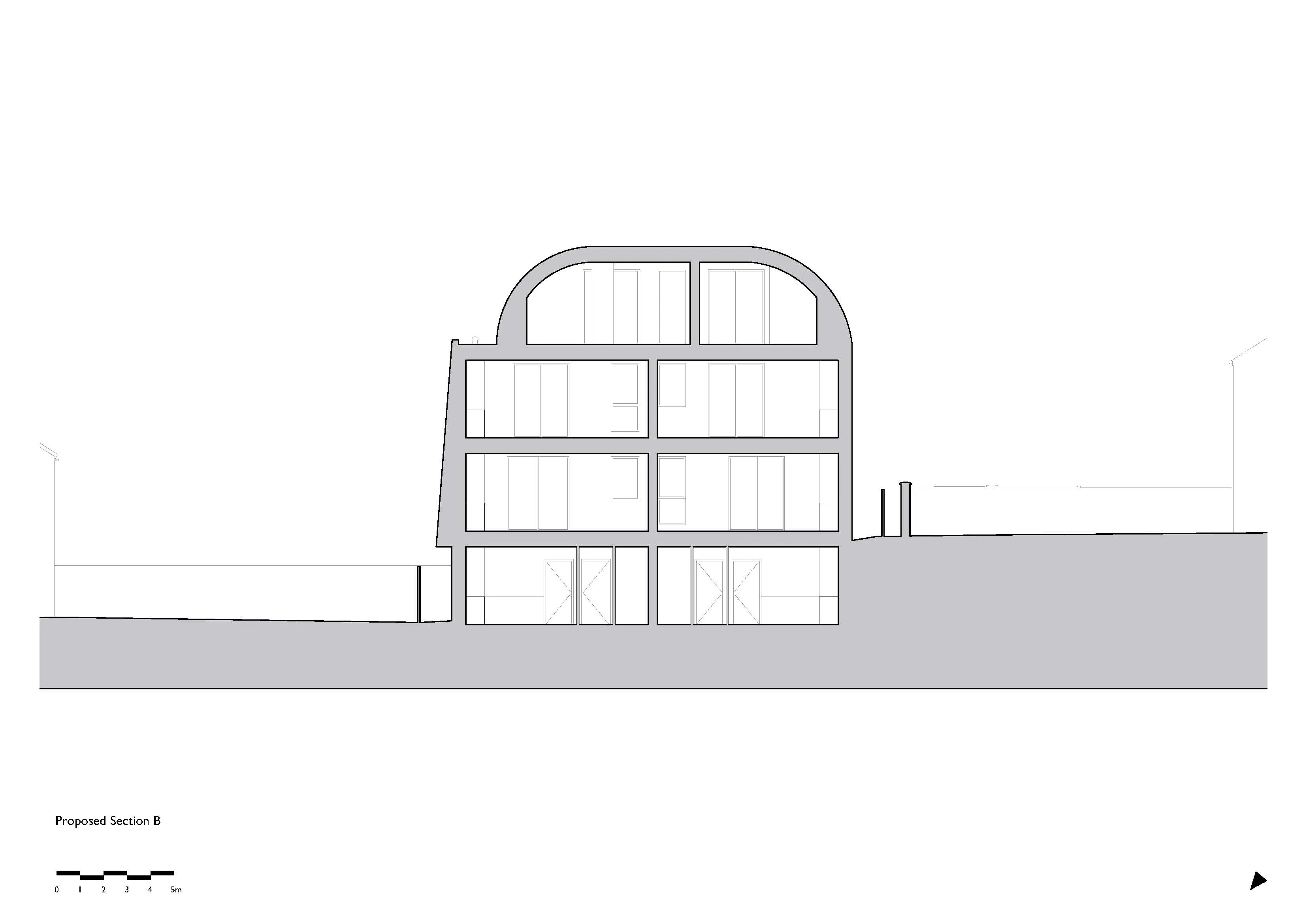

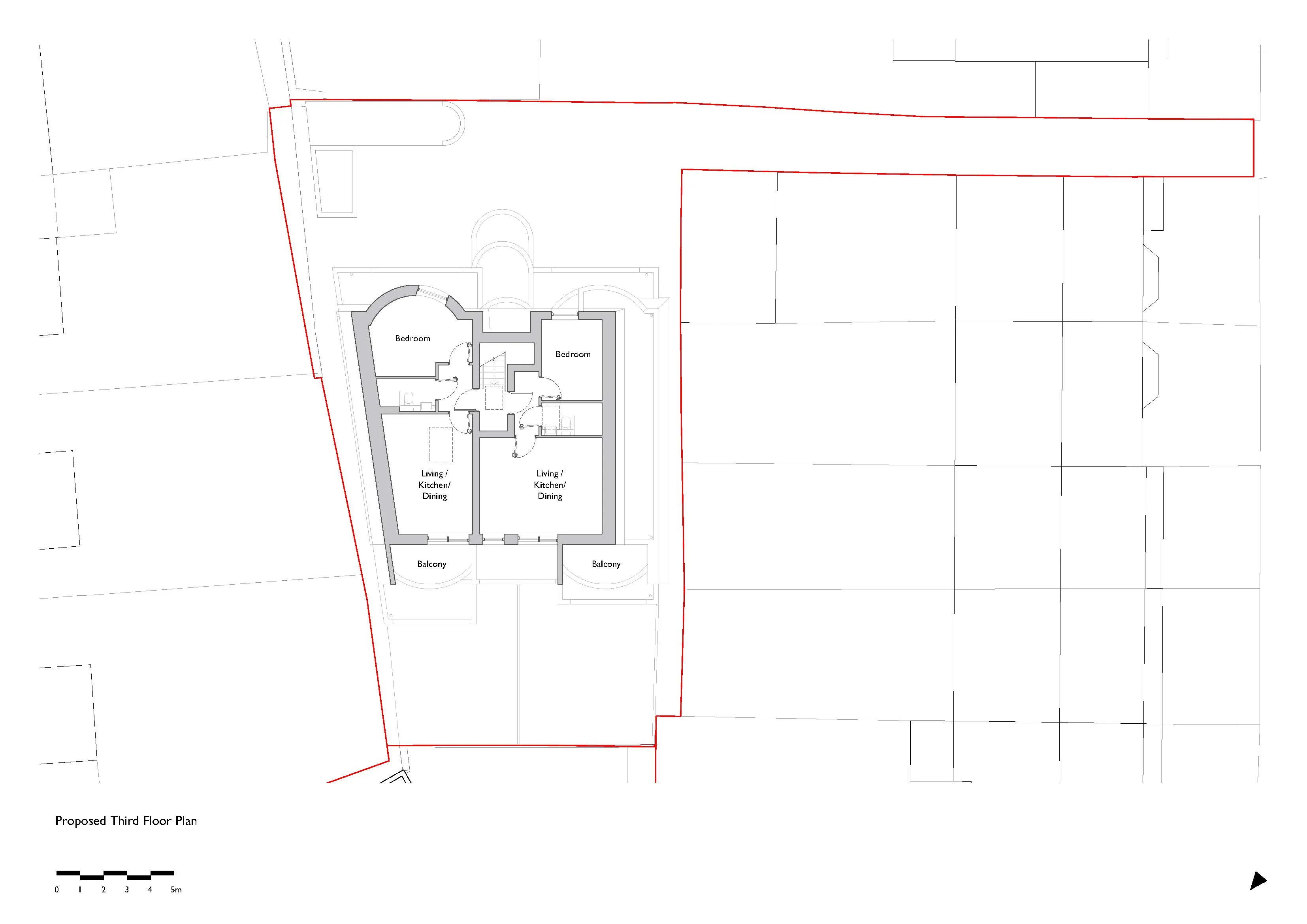

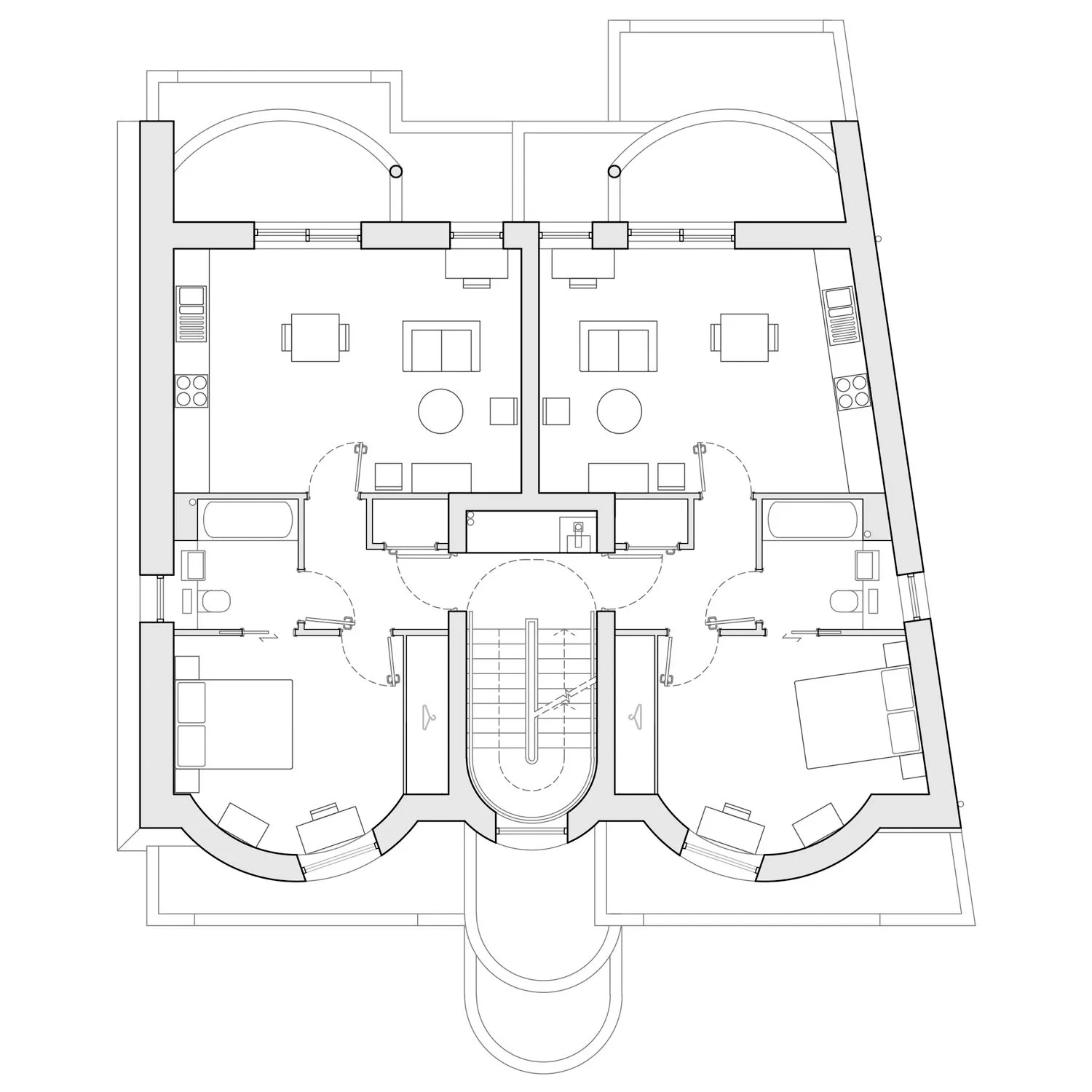

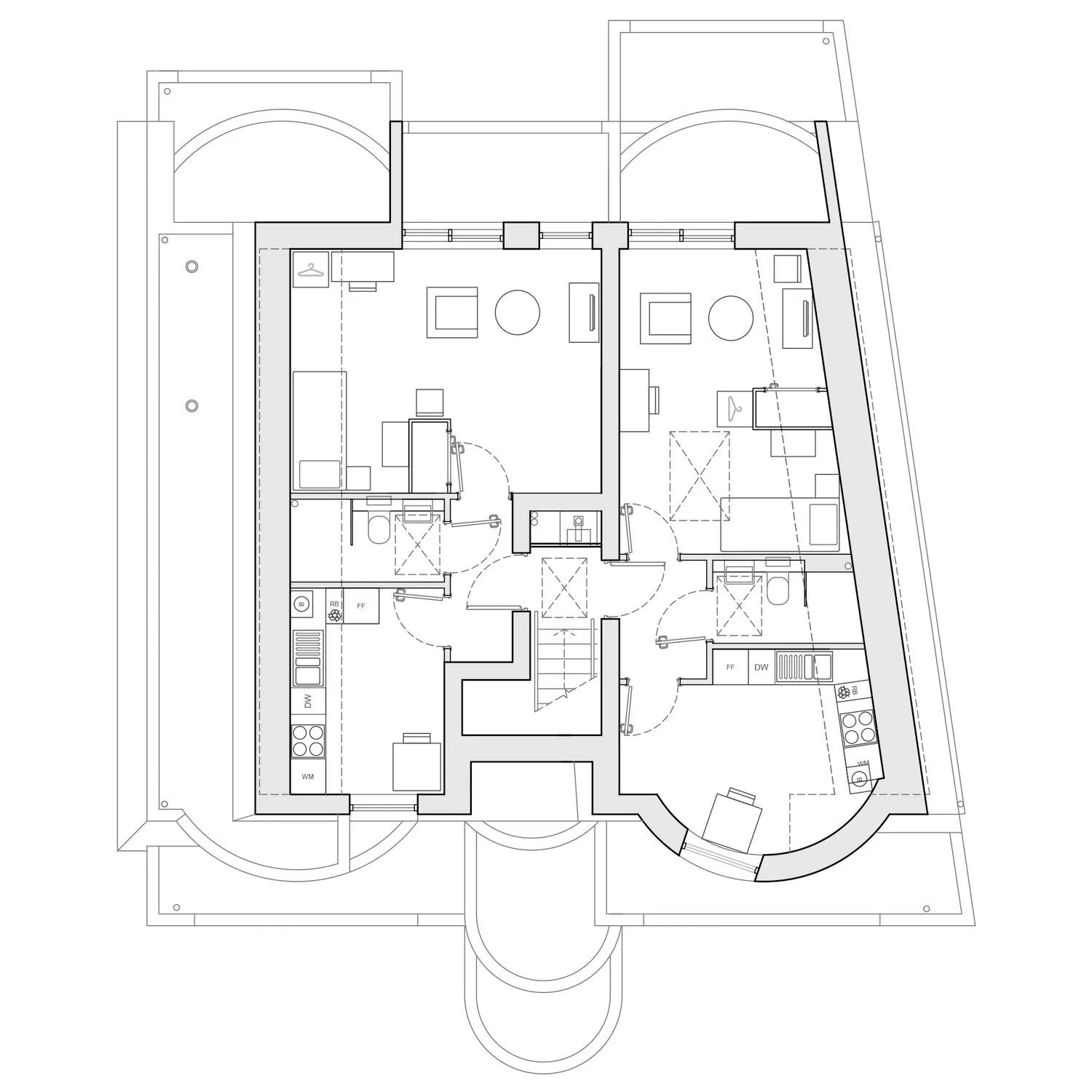

We believe in a renewed purpose for backland brownfield sites, which we investigate in all of our small site work. All of the proposed units are dual aspect, and have generous private amenity, as well as a communal garden and play area at the front of the building. The proposal contains two three bedroom units on the ground floor with generous front and back gardens, and direct access from the road, with three one beds and a two bed on the first and second floors, and finally two studio units, but with separate kitchen and dining rooms, occupy the third floor. The barrel-vaulted roof achieves the most internal headroom with the least impact on neighbours, and the design makes use of the stepped section of the site - which was a former gravel pit - in order to maximise the size of the ground floor units.
